If you've ever spent time around toddlers, the following scene should be familiar. The toddler is excited! They are taking some of their very first steps, and maybe they're moving a little too fast. OUCH! They stumble and fall, scraping their knee on the ground.

To the toddler, this might be one of their very first injuries, and it's a big deal! Perhaps the skin on their knees is gone forever! It's hard to explain to a child that their leg will heal when they're feeling pain, but let's zoom in on this moment.

The skin cells from their knees really are gone for now, but not forever. How is it that this skin returns? The skin cells left over have a lot of work to do. These cells will have to produce clones, copies of themselves in a process called the cell cycle and cell division.

  • First, we will look at the diagram and phases of the cell cycle.
  • Then, we will talk about the regulation of the cell cycle.

Cell Cycle Diagram

The cell cycle describes the life cycle of a eukaryotic cell as it performs its necessary functions and prepares for cell division, producing two new daughter cells. The cell cycle is split into two phases: the interphase and the mitotic phase. Figure 1 shows the diagram of the cell cycle.

Cell Cycle interphase and mitotic phase wikipedia.org

Figure 1: The cell cycle: Interphase and the Mitotic phase, as well as the sub-phases: G1, S, G2, Mitosis, and Cytokinesis. Source: Wikipedia.org

Cell cycle phases

The cell cycle phases, interphase and the mitotic phase, are further broken down into sub-phases: G1, S phase, and so on. Let's explore each of these phases and sub-phase of the cell cycle more thoroughly:

Interphase

Interphase is the longest portion of the cell cycle, where the cell performs its essential functions and prepares for division. Interphase is broken down into three sub-phases: first gap phase (G1), synthesis phase (S phase), and second gap phase (G2). These cell cycle phases are described briefly below:

First gap phase (G1)

  • The cell performs all of its necessary functions.

  • Accumulates energy and proteins in preparation for the synthesis phase.

  • The cell grows so that it is large enough to be divided in two.

  • The first cell checkpoint ensures the cell is ready to move on to S phase.

Synthesis phase (S phase)

  • The cell undergoes DNA Replication, copying exactly all of the DNA chromosomes.

  • The chromosomes now form the recognizable X-shape, each half of the X being a full copy of the other side. Each half is called a sister chromatid.

  • Organelles called centrosomes are duplicated.

Second gap phase (G2)

  • The cell continues to grow and accumulate energy for the mitotic phase.

  • The organelles are duplicated for each daughter cell.

  • The cytoskeleton is dismantled into microtubules to be used during mitosis.

  • A second cell checkpoint ensures the cell is ready to enter the mitotic phase.

Mitotic phase

The mitotic phase of the cell cycle is when the cell separates its DNA chromosomes and cell components, leading to cell division and daughter cells. The mitotic phase consists of two sub-phases that occur simultaneously: mitosis and cytokinesis. Mitosis is the division of the DNA chromosomes and takes place over five sub-phases: prophase, prometaphase, metaphase, anaphase, and telophase. The deep dive below gives a brief overview of the sub-phases of mitosis. Cytokinesis is when cell division actually happens, producing daughter cells. In animal cells, an actin ring pinches the cell's plasma membrane together until it has split into two cells, almost like pinching a piece of clay into two. Plant cells, however, build a cell plate inside itself until it fuses with its outer cell wall and separates the two new daughter cells. With cytokinesis complete, the cell cycle is also complete and may begin once again for each of the daughter cells.

Prophase

  • In the first stage of mitosis, the chromosomes begin to condense and become visible.
  • Centrosomes separate to opposite sides producing spindle microtubules. These microtubules move the chromosomes in the cell, like puppet strings.
  • The nuclear envelope breaks down and moves to the edge of the cell, making way for mitosis.

Prometaphase

  • The chromosomes fully condense but are still being directed to the middle of the cell.
  • Spindle microtubules attach to each sister chromatid at structures called kinetochores.
  • The centrosomes have moved to opposite poles of the cell.

Metaphase

  • The chromosomes are aligned in the center of the cell on a straight line called the metaphase plate.
  • A cell checkpoint ensures that the spindle microtubules have attached to each sister chromatid's kinetochore correctly, in preparation to separate the chromosomes.

Anaphase

  • The mitotic spindles shorten, pulling each of the sister chromatids apart. Now that the chromatids have separated, they are called daughter chromosomes. Two full sets of DNA chromosomes should now be on opposite sides of the cell.
  • Unattached spindle microtubules elongate the cell into an oval shape, preparing it for cell division during cytokinesis.

Telophase

  • Two new nuclear envelopes form around the DNA chromosomes.
  • The chromosomes loosen into usable chromatin.
  • the spindle microtubules break down and are recycled into the cytoskeleton for the new daughter cells after cytokinesis.

Gap 0

Immediately after the mitosis cell division, the new cell may enter a quiescent stage called gap zero (G0) of the cell cycle, and will not continue to actively divide. This may be a temporary stage while the organism is under stress, before the cell moves into the G1 after some outside stimulus. Or it can be permanent in the case of nerve or heart cells that do not actively divide once fully formed.

Cell cycle regulation

Imagine, for a moment, that the cell did not have all the energy or proteins necessary to complete DNA replication. Maybe some of the chromosomes were completely copied, others only partly copied, and some not at all. How would this affect mitosis or the daughter cells that divide from this parent cell?

It could be disastrous! The daughter cells might immediately die, or live but be unable to complete their function, or continue dividing without stop causing cancer. To prevent this the cell tightly regulates the cell cycle using "checkpoints" between G1 and S phase, G2 and mitotic phase, and during metaphase of mitosis.

G1/S checkpoint

Moving into the S phase of the cell cycle is the point of no return for cell division, often called the restriction point. Once the chromosomes start to replicate the cell is committed to becoming two new cells. This first checkpoint in the cell cycle monitors if the cell is ready to complete DNA replication using extracellular signals, such as growth factors. The cell also checks its chromosomes for DNA damage. If damage is detected, it will pause the cell cycle. The cell may then try to repair the DNA if it can or move into G0 until it is ready or triggered to move into the S phase by another signal.

G2/ Mitotic phase checkpoint

This checkpoint looks to ensure that the cell is large enough and has enough energy to complete the cell cycle with mitosis and cytokinesis. But the main regulation that occurs here inspects the cell's DNA. If the chromosomes are not duplicated, or if they are damaged in some way, the cell stops the cell cycle and tries to fully replicate or repair the chromosomes, before continuing onto mitosis.

Mitosis metaphase checkpoint

This checkpoint happens during mitosis after the chromosomes are aligned on the metaphase plate, right before anaphase separates the chromosomes into what will become the daughter cells. This checkpoint ensures that the spindle microtubules have attached to the duplicated chromosomes correctly at the kinetochores. If microtubules are not attached correctly, the daughter cells may end up with too much or too little DNA, and the cell will halt mitosis until the spindle fibers are attached correctly. If everything gets fixed, the cell cycle will continue, finishing mitosis and cytokinesis.

Cell cycle regulator molecules

While the checkpoints take stock of the cell at certain, predetermined points, there are also intracellular molecules that help to push the cell along the cell cycle, or stop the cell cycle if they "notice" something is wrong. Molecules that help to continue the cell cycle engage in positive regulation, while molecules that may stop the cell cycle engage in negative regulation.

Positive regulation of the cell cycle

The key proteins that help to advance the cell cycle are called cyclins and cyclin-dependent kinases (Cdks). There are four cyclins that change in concentration to help to regulate the cell cycle (Fig. 2). As their concentrations increase in the cell, triggered by internal and external signals, the cyclins help to move the cell cycle into the next phase. After the cyclin initiates the next phase, they are quickly degraded.

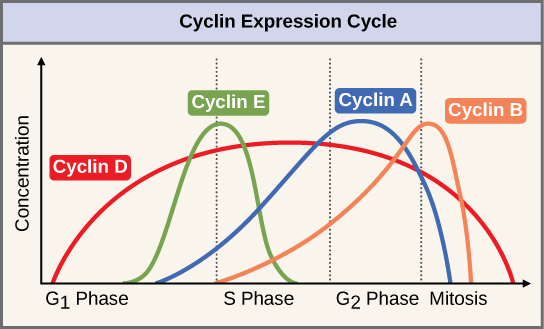

Cell Cycle positive regulators wikipedia.com

Figure 2: The concentration of cyclin molecules during the cell cycle. Source:

wikipedia.org

Cyclins cannot act on their own and must bind to a Cdk. After the cyclin has bonded with a Cdk, it must also be phosphorylated by another kinase, to activate the cyclin/Cdk complex. Each phosphorylated cyclin/Cdk complex has a specific shape to bind and phosphorylate the next protein in the cell cycle regulation (Fig. 3). While the amount of cyclin fluctuates a lot during the cell cycle, the amount of cyclin-dependent kinases stay relatively constant but inactive until their specific cyclin protein is present to continue the cell cycle.

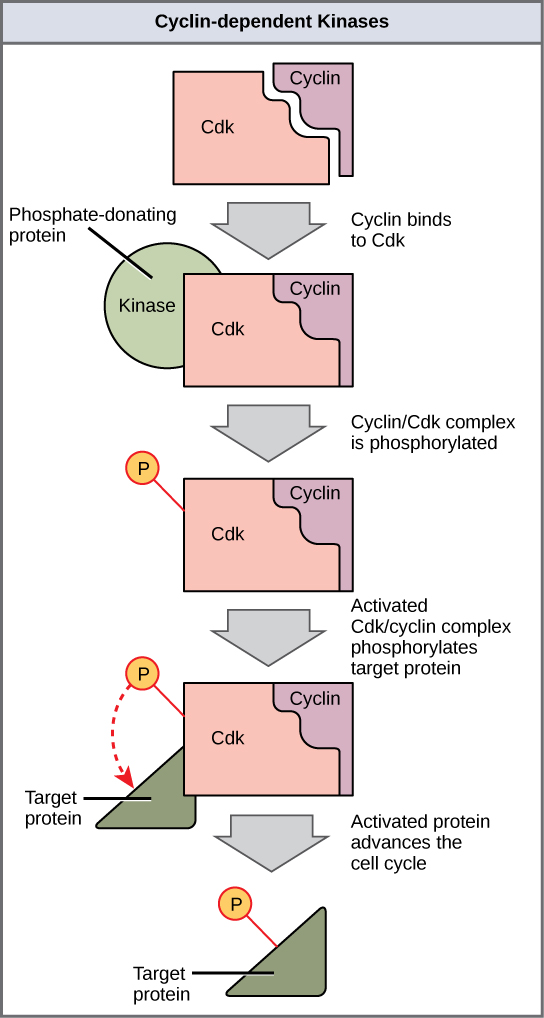

Cell Cycle Cyclin Dependent kinases openstax.org

Figure 3: Cyclin and cyclin-dependent kinases bind and are activated via phosphorylation from another kinase. The activated cyclin/cdk complex can now activate its target protein and advance the cell cycle. Source: openstax.org

Negative regulation of the cell cycle

The main negative regulatory molecules for the cell cycle include retinoblastoma protein (Rb), p53, and p21. These proteins are called tumor-suppressors because they were discovered while investigating cancer cells, when the cell cycle continues indefinitely, ignoring the cell cycle checkpoints. Rb, p53, and p21 work primarily at the restriction point: the G1/S phase checkpoint.

P53 is a main regulator in moving into S phase because it looks for and manages damaged DNA during G1 preparation. If p53 finds any damaged DNA, it will increase in concentration, stop the cell cycle, then recruit proteins to repair the DNA. Sometimes DNA cannot be repaired, and so p53 will trigger apoptosis, programmed cell death, instead of allowing the cell to continue the cell cycle.

P21 is produced when there is enough p53 in the cell. P21 acts directly on cyclin and cdks by binding to the cyclin/cdk complex, inhibiting their ability to phosphorylate and progress the cell cycle. As p53 detects problems in the cell, the concentration of p53 and p21 increases, preventing the cell cycle from continuing.

Rb primarily monitors the cell size. When the cell is too small, rb will be active and will bind to transcription factors, specifically called E2F, that help to produce proteins needed for the G1/S checkpoint. As the cell grows it can spend energy phosphorylating rb, changing its shape and forcing it to release E2F. Now that E2F is free, it can begin the transcription of the proteins necessary to progress the cell cycle.

Cell Cycle - Key takeaways

  • The cell cycle is made of two main phases: the interphase and the mitotic phase.
  • Interphase has 3 sub-phases: G1 that prepares the cell for the S phase, S phase replicates DNA, and G2 which prepares the cell for cell division during the mitotic phase.
  • The mitotic phase has mitosis and cytokinesis. Mitosis separates the duplicated DNA into the two new daughter cells and consists of 5 sub-phases: prophase, prometaphase, metaphase, anaphase, and telophase. Cytokinesis is when cell division finally occurs completing the cell cycle.
  • After completing the cell cycle, the cell may move into G0 where it only performs its function and does not complete a new cell cycle. Nerve cells and cardiac cells are prime examples of G0.
